PACl Trial Data.
Compiled by: Andy Kirkwood, Justine Flanagan. Dec 2019.
Contact: [firstName] @ islandbooth.com.
Masthead Ngatoe water treatment facility.
This is a working draft. Published 10 Nov 2020. Updated 29 Jan 2021.
As part of the Te Mato Vai Project - Stage 2, the Government of the Cook Islands has constructed water treatment facilities. These include chemical-treatment systems that use polyaluminium chloride (PACl) to remove fine particles from streamwater.
The use of PACl will generate hazardous waste. The method of operation risks impacts on biodiversity due to the routine, or accidential, discharge of chemical wastewater, and then the long-term stockpiling of sludge.
Treatment facilities have been constructed in ten locations, on the majority of Rarotonga’s main freshwater streams. Waste will be discharged at elevated locations, and the streams are used to irrigate food crops, run through residential areas, and sustain wetland ecosystems before being discharged to the lagoon.
The Cook Islands Government claims to have consulted extensively with intake landowners, but project managers GHD have failed to complete the required regulatory process to obtain a Project Permit for the trial.
As the PACl trials commence (Sept 2020), there is no plan in place for the disposal of sludge, which has been estimated at 4,000 cubic meters per year (Expert Report, Mar 2020), This equates to a 20-foot shipping container of sludge, per intake, each month. Although methods of sludge reuse have been researched internationally, all require investment in infrastructure to dewater, dry, and store the material. In New Zealand, sludge disposal is typically to landfill.
- Wastewater discharge points are within 4km of the lagoon.
- The stream discharge of water treatment waste is prohibited in New Zealand, Australia, and the Cook Islands.
- The existing solid waste site in Arorangi is over-full, and sludge must be contained and groundwater quality monitored due to the risk of leaching. Any plan for a long-term disposal site would require a (separate) Project Permit, dependent on completing an environmental impact assessment including public consultation.
The relevant legislation, policies, and standards relevant to the Te Mato Vai Project were identified in the EIA report prepared for the Stage 2 Construction Permit. The release of water treatment waste to waterways is prohibited under the Cook Islands Public Health Act 2004. Material including sludge or other by products from water treatment plants is Hazardous waste. Section 54(2)(d) prohibits hazardous waste to be directly or indirectly deposited or discharged, or to seep, into a waterway.
Te Mato Vai systems have been constructed to discharge water treatment by-products to the stream (see aerial view of Ngatoe below). Although sludge is intended to be moved off-site, surface flooding may result in wash-out of the storage ponds. This occured after heavy rain in Aug 2020 — prior to the operational use of chemicals.

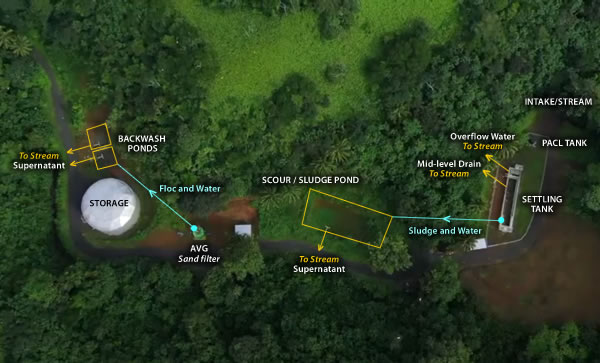

Above Ngatoe waterworks showing the five stream discharge points Treatment flow is right-to-left.
Ngatoe Intake - Take a Look. View on Facebook.
GHD has described the first six-months of operation as a trial. Landowners were led to believe that no chemically-treated water would leave facilities, and that waste would be contained within the onsite holding tanks and waste storage ponds. However the data and accompanying notes released from Ngatoe (28 Sept-11 Oct 2020) show that the new system is Operational (on-line).
If acceptable results are achieved for the off-line trial the results are forwarded to TTV for their “confirmation to proceed” to discharge the treated water to the Network system…
The next stage is called the on-line trial. Once the on-line PACL trial is started it will continue at each intake for the whole period of the overall trial which could be as long as six months depending on achieving a good level of data which will be used to operate the plants in the future.
-MFEM, Oct 2020
The Ngatoe results show that trial data was collected for three days, Sept 28-30 2020. Approval was then obtained from To Tatou Vai and water released to the ‘Network system’ — the public water supply. The Te Mato Vai system was on-line from 1 Oct 2020. For the remaining five-plus months, chemicals will be used in a live environment.
How will you monitor the impact of PACl use on the streams?
During the trials, we’ll do a mix of tests within the water treatment plant and in the streams. This includes testing for dissolved aluminium in water. These tests will be at regular intervals, and each time we need to adjust the amount of PACL we’re using.
9 Feb 2020: What happens when we commission Te Mato Vai? Te Mato Vai PMU.
Assuming the data provided from Ngatoe is representative, it is unlikely that a ‘good level of data will be achieved’. Among many ommissions is the initial dose of PACl, whether dosing was continuous; and if dosing was at a constant rate over the trial period.

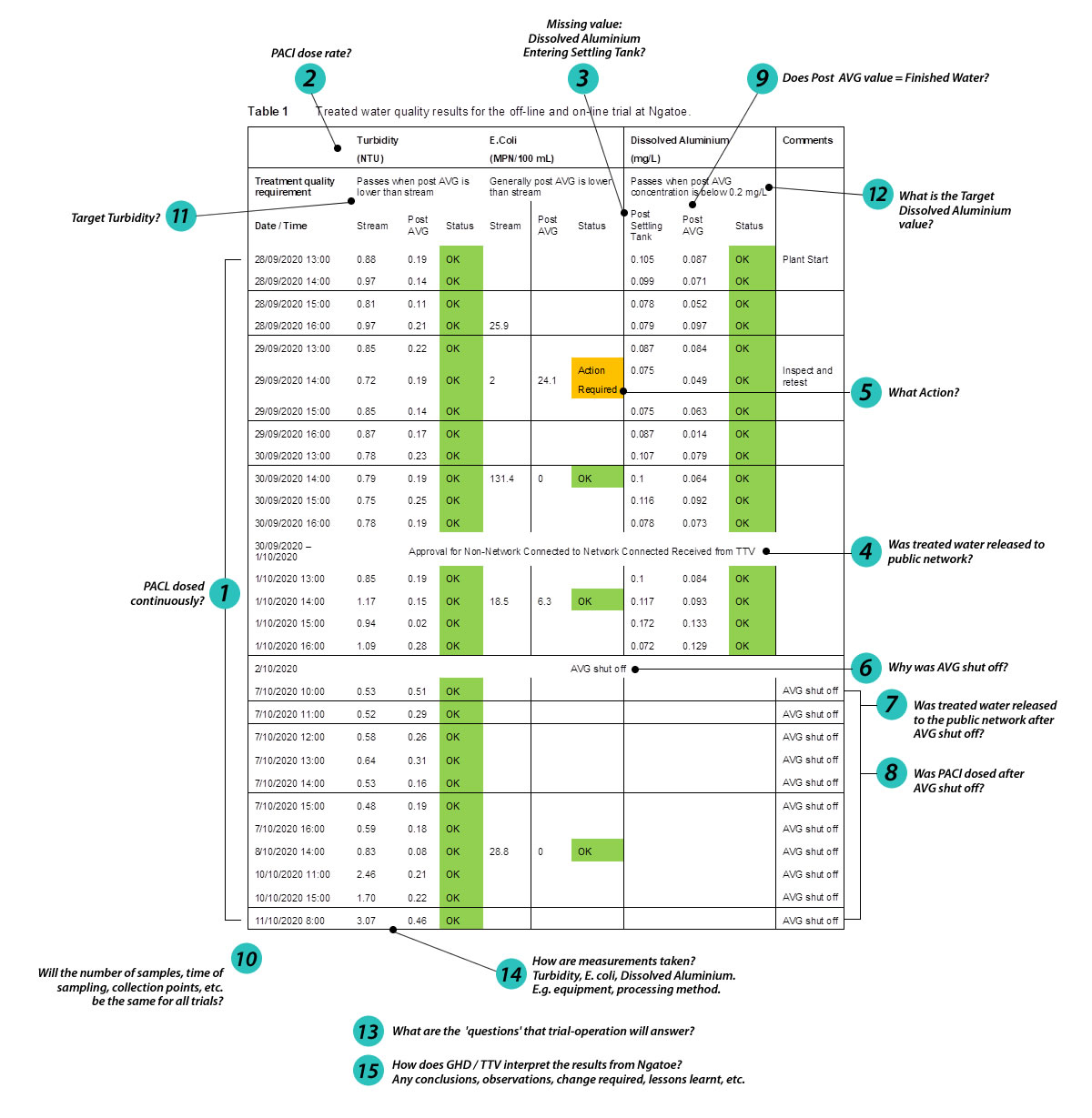

The lack of data prevents independent interpretation, and also exhibits a bias to proving chemical treatment. No baseline data has been collected on the effectiveness of non-chemical operation, and the new system introduces three forms of physical treatment: a coarse screen, three hour settling tank, and sand filtration.

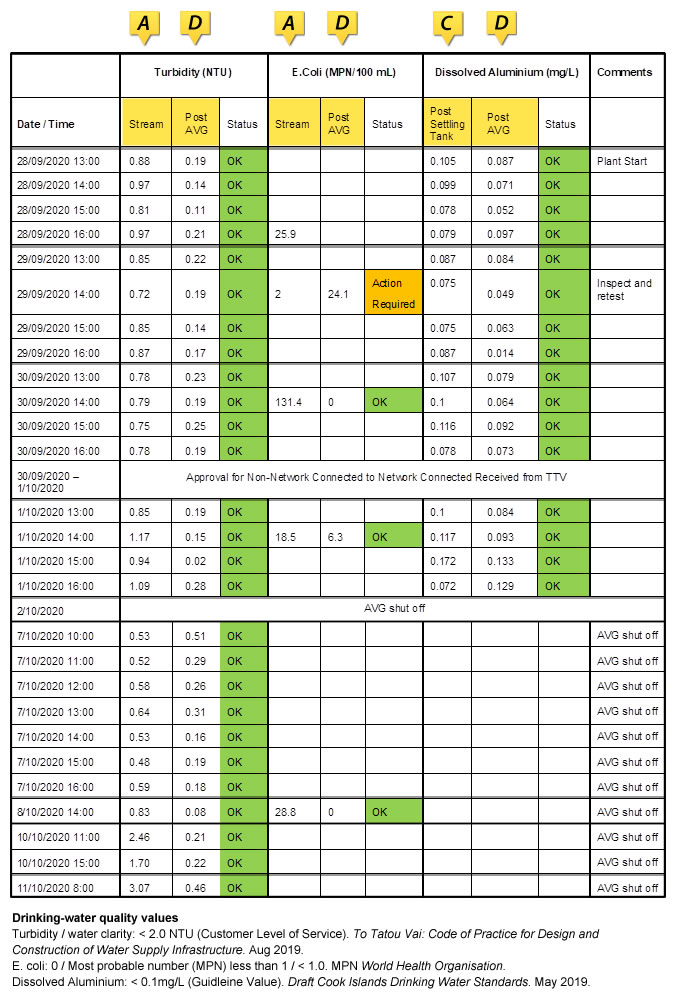

Above Ngatoe PACl trial data: 28 Sept-11 Oct 2020
Further reports were released in Dec 2020. Avana and Turangi are two intakes on the island (although natural flows are now less relevant as water production is limited by sand-filter through-put).
Avana PACl Trial Data, Nov 2020
Turangi PACl Trial Data, Nov 2020
The data tables provide a desciption of how intake performance will be assessed. For turbidity, treatment is considered successful if:
The turbidity after the AVG should be lower than the raw stream turbidity.
-PACl Trial Results Memo 1 - Avana. GHD.
This seems a reasonable metric, however there are formal standards applicable to the monitoring of water clarity. TTV require water to the delivery point to be under 2.0 NTU, where a lower NTU value means clearer water.
At Ngatoe, the untreated streamwater met To Tatou Vai’s draft service delivery turbidity standard in 25/27 samples. When untreated streamwater already meets the standard, then the PACl serves no purpose.
Whether improvements in turbidity should be attributed to the PACl is also debateable. Turbidity is also improved by physical processes: coarse screening, settling time, and sand filtration. The trial method is only to sample at the stream and after the sand filter, the contribution of each of the physical steps to improved clarity cannot be isolated.
Clear water is also more difficult to coagulate. Clumps can only form when particles are in close proximity. In clear water the particles are more widely distributed.

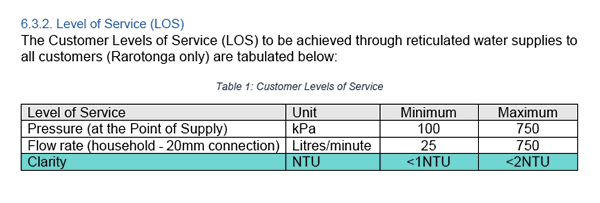

Above:To Tatou Vai Clarity service levels Source: To Tatou Vai: Code of Practice for Design and Construction of Water Supply Infrastructure. Aug 2019. To Tatou Vai Ltd.
Interim standards for Cook Islands drinking water were proposed in 2019.
- Turbidity / water clarity: < 2.0 NTU (Customer Level of Service). To Tatou Vai: Code of Practice for Design and Construction of Water Supply Infrastructure. Aug 2019.
- E. coli: 0 / Most probable number (MPN) less than 1 / < 1 MPN. World Health Organisation.
- Dissolved Aluminium: < 0.1mg/L (Guideline Value). Draft Cook Islands Drinking Water Standards. May 2019.
A genuine trial
Stakeholders including environmental protection organisations also have an interest in the viability of (solely) physical treatment processes. The Te Vai Ora Maori lobby group provided to landowners an assessment of the trial - critical of the method; the sample points; the (lack of) environmental monitoring; the test regime; and the data collected.
The review also recommends A/B comparison: a concurrent trial with-, and with-out PACl. A/B trials can be conducted at the larger facilities where there are dual treatment paths with separate settling chambers and sand filters for each path.

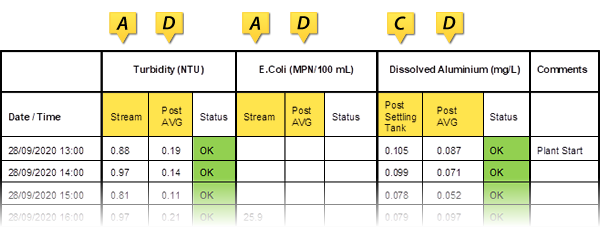

Above: Edited data table indicating water sample point location along treatment path
The sample locations biases chemical treatment as the efficacy of the physical treatment steps cannot be constrasted.
- Chemical sludge began to accumulate in the settling tank 28 Sept 2020.
- The AVG sand filters automatically self-clean (backwash) to onsite storage ponds. Ponds are located alongside the streams and have been observed to overflow in storm conditions (e.g. Takuvaine Aug 2020).
- Chemically treated water was fed into the unified, island-wide public water network from 1 Oct 2020.
- Environmental risks are not solely due to chemical use; physical processes such as the force of the discharge can disrupt ecosystem functions - erode streambanks, stir-up sediment, etc.
- No EIA process has been completed for managing water treatment residuals (sludge and wastewater). Sludge accumulating the the settling tank will impact treatment efficacy. Maintenance cycles are impacted by climatic conditions: more rain means more sludge, and more frequent clearing. The setting tank may need to be cleared every 33 days (Expert Report, Mar 2020).
- Trials at all ten new water treatment facilities are being conducted concurrently; without a Project Permit; without assessment of environmental impacts; and without any plan in place for the disposal of hazardous waste.

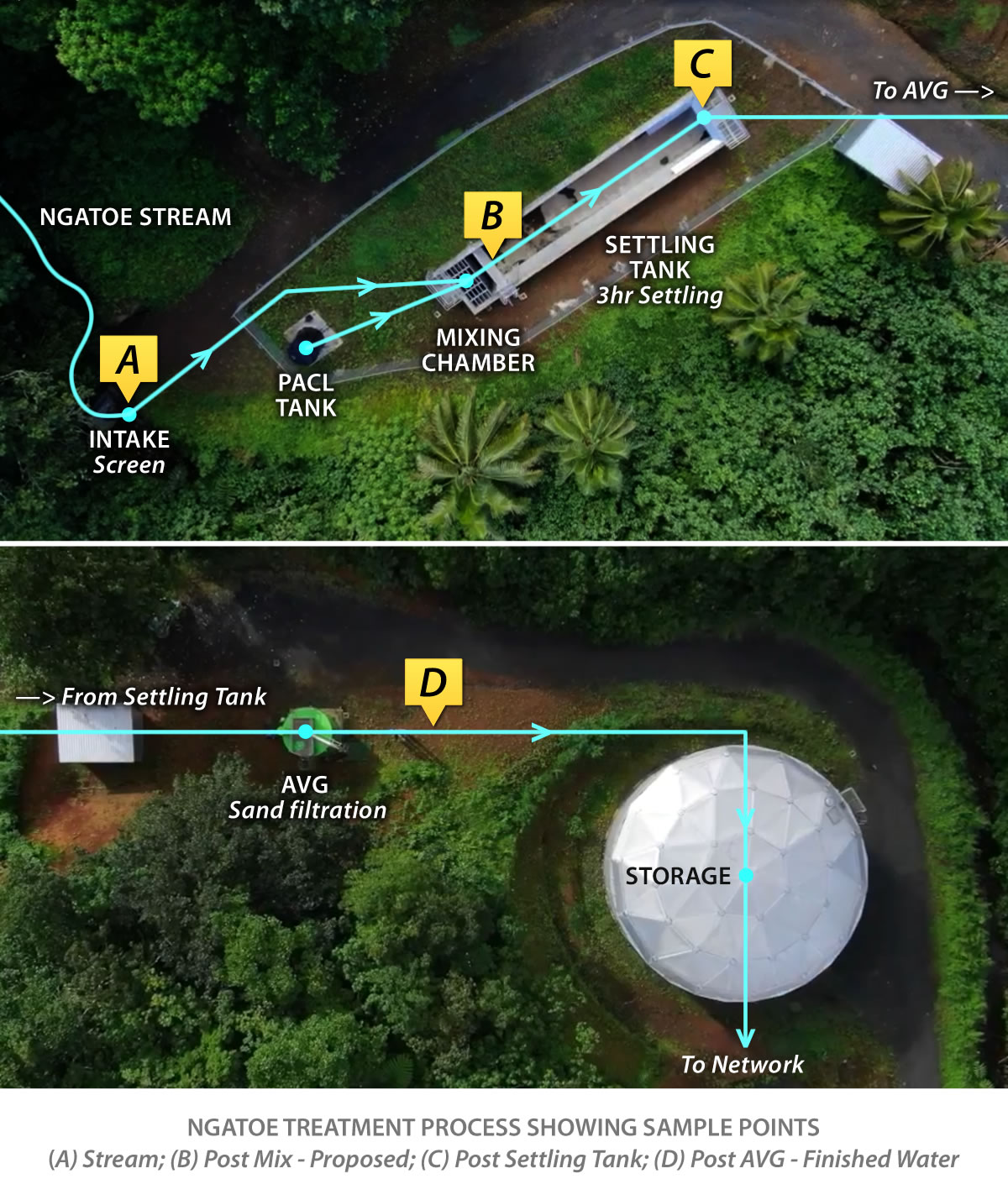

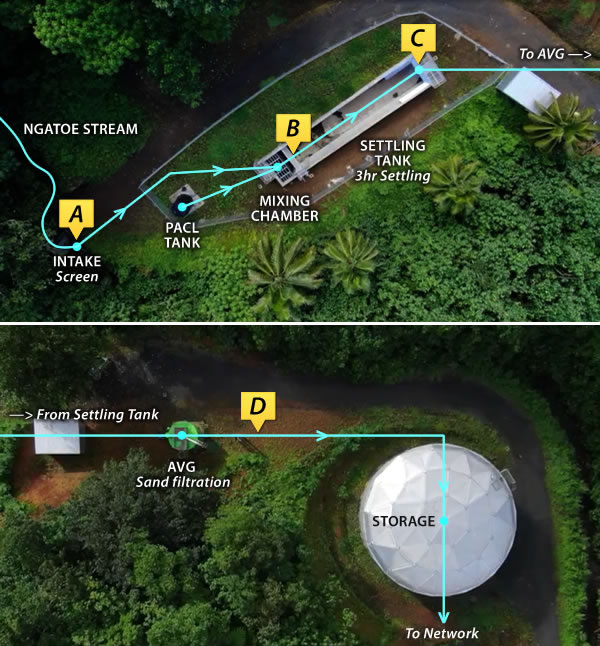

Above: Ngatoe Treatment Process Showing Approximate Water Sampling Points
(A) Stream; (B) Mid-level Drain Proposed; (C) Post Settling Tank; (D) Post AVG - Finished Water.
Te Vai Ora Maori propose that all water quality parameters be tested at all four sample points. In the Ngatoe data, turbidity readings are only taken at the Stream (A) and Post AVG (D).
Sludge cannot be contained in the settling tanks without compromising drinking-water quality, and ponds are not large enough to contain six-months of waste. The timing of the trial also coincides with Rarotonga’s wet season increasing the risk of accidental wash-out.
The risks associated with use of PACl arise from operating the system. Treated water is fed into the public supply network and waste is generated. When the trial is trial-operation; then an EIA is required, and informed public consent is required.
Monitoring environmental impact
The environmental monitoring proposed by GHD as part of the trial-operation is to record:
- dissolved aluminium levels;
- and turbidity (water clarity).
Genuine environmental monitoring would include also record water flows, climatic conditions (e.g. storm events), and survey indicator species/populatoin size, along with the streamwater chemistry parameters that effect the ecotoxicity of dissolved alumininium: dissolved organic carbon and total hardness (levels of calcium carbonate).
Dissolved oxygen content is useful indicator of overall stream health (monitoring oxygen levels is also proposed when discharging of wastewater de-chlorinated using sodium thiosulphate).
Freshwater Species Search Result, Cook Islands Biodiversity Database. The above result include estuarine species, but not insects that may also depend on freshwater ecosystems such as dragonflies and damselflies.
Expert Report - March 2020
In February 2020 an independent water engineer was appointed by the Ministry of Justice to answer landowner questions about the Te Mato Vai treatment system. The report was completed March 2020, and identified environmental risks associated with the use of an aluminium-based coagulant (polyaluminium chloride):
- Spillages while transporting the chemical to the plants and handling it while on each site.
- Leaks from chemical tanks and chemical pipework.
- Overflows from the settling tank.
- Discharges to the stream from the scour pond and/or backwash ponds.
- Flood flows from the stream, and/or runoff from the pond’s catchment, overflowing into the pond and causing sludge sediment to flow into the stream.
- Recovering and disposing of the sludge from the ponds.
-Te Mato Vai - Stage 2 - Expert Independent Report, Mar 2020
Point 3 - Overflows from the settling tank is not directly detailed in the report:
This risk has been reported on separately - refer letter to Judge (sic) Keane dated 9 March.
The Expert offered no firm conclusion regarding the suitability of PACl, but recommended landowners be provided with the ecological report study.
“… the residual aluminium could be in the range of 0.05 to 5 mg/L (as Al)”. If the aluminium in the discharge was greater than the lower end of this range, and stream was in low or zero flow, then this is concerning. There are also the potential adverse effects in the mixing zone to be considered…
Given the number of unknowns in the above, and I suspect the rather unique freshwater ecology of the streams of Rarotonga, I think the recent ecological report study (referred to in Mr. Free’s letter to me dated 4 March) should be circulated to the parties.
Untangling the above, the Expert is advising that:
- Rarotonga’s streams can run dry. If wastewater is discharged in drought conditions (‘low or zero flow’), then the potential impact of contaminants will be greater.
- The dissolved aluminium levels will be dependent on the amount of water in the stream. Aluminium at a concentration over 0.055 mg/L is considered a precautionary trigger value — with the potential of impact on biodiversity. The highest values recorded at Ngatoe (1 Oct) were 0.172 and 0.133mg/L. The figures appear to be trending an increase just priot to the sand filter being shut off.
- There will also be physical impacts along the stream where wastewater is discharged (‘mixing zone’). Erosion and an increase in the amount of sediment in the water is likley.
Not mentioned by the Expert is that species such as koura (prawns) burrow into the stream bed in drought conditions. Discharge may coagulate streamwater to form a seal on the streambed, resulting in benthic smothering. The Te Mato Vai Stage 2 EIA Report also identifies that discharge should avoid spawning cycles (for koura, this is the three days either side of the full moon).
Classification/subjects: Te Mato Vai, To Tatou Vai, coagulation, flocculation, water treatment residuals, polyaluminum chloride, PAC, PACL, water standards, water quality, Rarotonga, Cook Islands, South Pacific, environmental impact assessment, EIA.
References and Further Reading
- Water Quality and Fish Health - EIFAC Technical Paper 54. Z Svobodova et al, Food and Agriculture Organisation of the United Nations (FAO), 1993.
- Environment Act 2003. PacLII.
“Inland waters” means the waters and banks of any stream, river, or lake together with the bed (whether dry or not) of any stream, river or lake (for the purposes of this definition “bank” shall include all that area of land extending away from the stream, river, or lake and measured at right angles to a distance of 5 metres from the bank of that stream, river and lake);
- Hazardous Waste: Public Health Act 2004. PacLII.
Material including sludge or other by products from water treatment plants is ‘Hazardous waste’.
Section 54(2)(d) “prohibits hazardous waste to be directly or indirectly deposited or discharged, or to seep, into a waterway”.
- Cook Islands National Environment Service (NES): Specific Areas of Concern. -Accessed 2 Dec 2019.
- Te Mato Vai Project Raw Water Quality Review Rarotonga (2014). Watercare New Zealand.
- Te Mato Vai Environmental Impact Assessment Report / Detailed Design for Stage 2 August 2015. GHD.
See also: Te Mato Vai Stage 2 EIA Terms of Reference and Te Mato Vai Stage 2 Permit/Extension
- Polyaluminum Chloride Safety Data Sheets:
Ixom, ICL, Anchem, GEO.
Aluminum/Aluminium Compounds: Human Health, Animal Toxicity, Environmental Fate (Toxnet)
Peer-reviewed research index.
Aquatic Life Criteria – Aluminum/Aluminium. United States Environmental Protection Agency, 2018.
“The recommended aquatic life criteria for aluminum in freshwater depend on a site’s water chemistry parameters. … The criteria are calculated based on a site’s pH, total hardness, and dissolved organic carbon (DOC).”
- Fact Sheet: Final
2018 Aquatic Life Ambient Water Quality Criteria for Aluminum in Freshwaters
- Management of Water Treatment Plant Residuals in New Zealand: Handbook. Sept 1998.
Overview of waste storage, treatment and disposal methods.
- Guidelines for Drinking-water Quality Management for New Zealand (Updated June 2019). New Zealand Ministry of Health, 2019.
(PDF) Chapter 13: Treatment processes, coagulation
- (Ireland) EPA Drinking Water Advice Note No. 15: Optimisation of Chemical Coagulant Dosing
at Water Treatment Works. June 2014.
Determining appropriate dosing of PACl requires historical water quality data to determine an appropriate equation (algorithm). The algorithm is used to calculate the appropriate chemical dose based on measurement of the current raw water quality.
For water sources where raw water quality changes slowly, manual control of dose may be appropriate and cost-effective, and the algorithm may be used by operators to guide them to the correct dose. For sources subject to rapid change (e.g. direct abstraction from rivers) automated control may be appropriate, and the algorithm may be implemented to provide such control.
- Alum Sludge Reuse Investigation Working Technical Report. GHD (Australia).
- Guidelines and Good Practices For Water Treatment Residues Handling, Disposal And Reuse in South Africa. S Mokonyama, et al, Umgeni Water. Dec 2017.
- Enhanced Coagulation of Low Turbid Water for Drinking Water Treatment: Dosing Approach on Floc Formation and Residuals Minimization. Jr-Lin Lin and Aldeno Rachmad Ika. Environmental Engineering Science Vol. 36, No. 6. June 2019.
Polyaluminum chloride (PACl) is a commonly used type of hydrolyzed coagulant in the water treatment process. Operators usually applied overdosing of coagulants to reduce turbidity … but resulting in excessed residual Al in finished water more than the limit of drinking water standard. High level of aluminum in the human body is known to have negative effects toward the brain, especially in conditions such as Alzheimer’s disease and dementia (Kawahara and Kato-Negishi, 2011; Killin et al., 2016). Aluminum as a potent neurotoxin can accumulate in the human body and has side effects such as memory loss and impaired coordination (Yasui et al., 1997); in addition of its immunotoxicity effect to the human body (Zhu et al., 2014).
- To Tatou Vai: Code of Practice for Design and Construction of Water Supply Infrastructure. Aug 2019. To Tatou Vai Ltd.
- Terms of Reference for PACL use EIA. GHD Memorandum, Oct 2019.
- Te Mato Vai Information to Support Approval to Commission Te Mato Vai Stage 2 / Landowner Memorandum, Scott Cairney, GHD, Nov 2019.
- Aquatic Macroinvertebrates: Biological Indicators of Stream Health. University of Kentucky.
Examples of aquatic macroinvertebrates include insects, worms, snails, mollusks, and crustaceans… macroinvertebrates are an integral part of the food chain. Without these creatures, a stream’s entire aquatic food web would collapse. Many macro-invertebrates feed on organic material such as leaves and algae.
- 30 Nov 2019: Govt turns on filtered water to homes. Anneka Brown, Cook Islands News.
After last minute talks with land-owners went right down to the wire yesterday, the Government has instructed contractor McConnell Dowell to begin turning on the taps.
Most land-owners of the 10 water intakes have agreed to a six-month trial of poly-aluminium chloride, a coagulant that cleans the water of smaller particles and harmful protozoa, like those that cause Giardia.
- 3 Dec 2019: Turn-on is a turn-off. Anneka Brown, Cook Islands News.
Furious Matavera resident Renall Vogel joined anti-chemical group Te Vai Ora Maori yesterday to protest government turning on the taps of the new filtered water intakes.… The Matavera water plant and pipes will, however, be flushed with chlorine to disinfect the new infrastructure, before it is washed out and the new water supply is switched on.…The water engineers will also begin a six-month trial of poly-aluminium chloride…
- 4 Jan 2020: The water debate continues. Te Ipukarea Society in Cook Islands News
Flocculation is a process of settling out particulate matter, for example dirt, from the water. Given that PACl is a chemical that produces a potentially toxic sludge as a byproduct of the flocculation process, this trial needed to be properly assessed for environmental impacts before it was approved.
Another purpose of an EIA is to look at alternatives that may have a lesser negative impact. Therefore, from an environmental perspective, the logical thing to do to reduce dirt getting into the water is to first trial alternatives which provide a lower level of risk to our freshwater ecology.
- 15 Jan 2020: To Tatou Vai makes progress with Environmental Impact Assessment. Media Release.
The EIA will advise as to potential effects of the by-products – sludge and discharge water from the coagulation, flocculation and sedimentation as part of the designed water treatment process for the Te Mato Vai project.
- 24 Jan 2020: Something in the water. Moana Makapelu Lee, Cook Islands News.
Ecologists have this week begun an ecological survey of the streams flowing through Te Mato Vai’s water intakes. The study includes a wide spanning survey of the aquatic habitat and wildlife populations as well as the stream conditions. Information gathered will contribute to the Environmental Impact Assessment report commissioned by Rarotonga’s water supplier, To Tatou Vai… Leading the study are aquatic ecologists Dr Natalie Clark and Lauren Pratt, who are employed by GHD New Zealand, which is engaged by the Cook Islands Government to deliver and manage Rarotonga’s new water facilities.
- 31 Jan 2020: Cook Islands water system EIA ‘too narrow’ Te Ipukarea Society / Radio New Zealand News.
“After talking to the consultants [Tonkin and Taylor] this EIA is only looking at the use of polyaluminium chloride…it’s not looking at chlorination and they may as well do the whole thing all at once…The EIA is not really looking at alternatives, it’s merely looking at the impacts of the PACl and how these may be reduced or mitigated on the assumption that PACl will be used.”
- 9 Feb 2020: What happens when we commission Te Mato Vai? Release, Te Mato Vai PMU.
